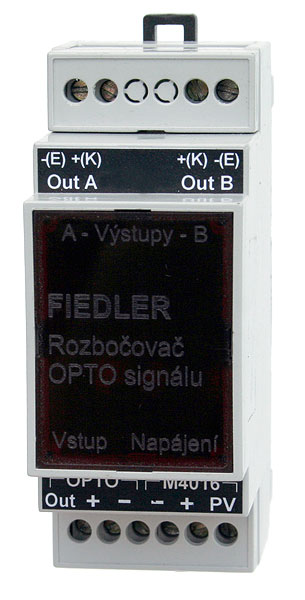

OPTO hub of sensors signal



The hub of pulses provides duplications and galvanic separations of pulses from OPTO (REED) sensors into 2 outputs (open collector), the third output is for connection with the unit M4016 pulse input, from which the hub is powered up. This third output is not galvanically separated from power supply and hub input.



The hub can be powered up by DC voltage 12 or 24VDC (for connection with M4016 it is 12VDC).

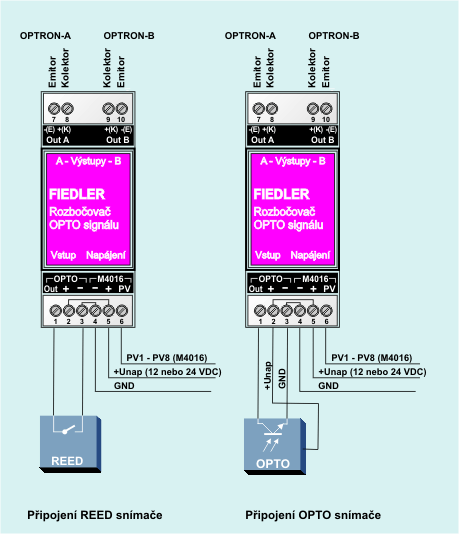

connection of screw terminal
