Pressures and flows regulation on water supply network

Pressures and flows regulation

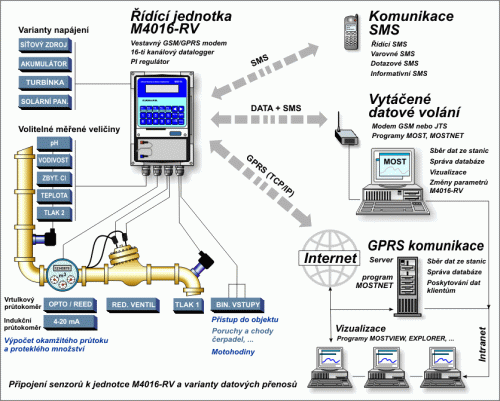

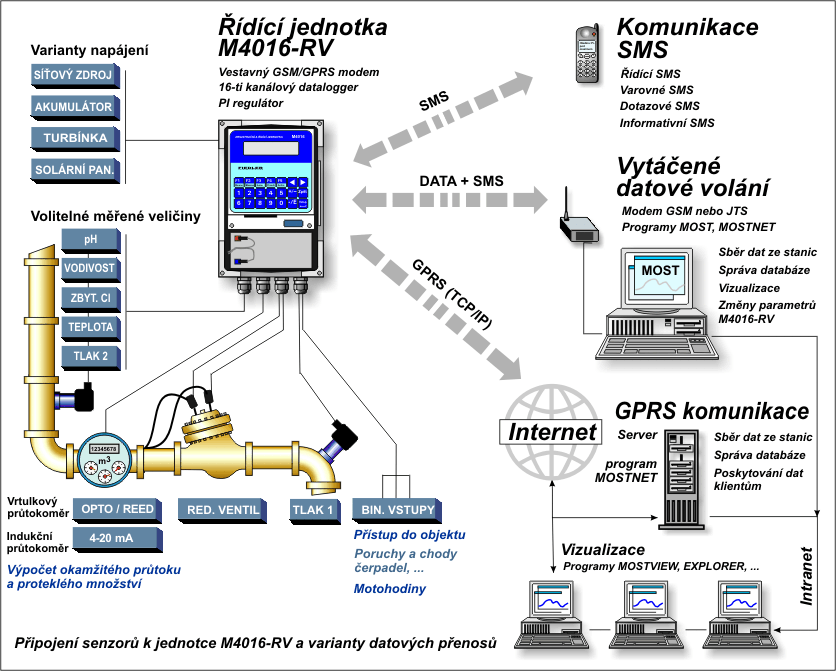

The control unit – telemetric station M4016-RV has a programme module which can control opening and closing of big regulation valves. The unit M4016-RV compare an actual pressure or flow-rates with demanded value at all the time.  Pressures and flows regulation, regulation valves Demanded values can be adjusted by form of constant or curve. This can be adjusted differently for each day. It is possible to adjust it via GPRS network or command SMS from a mobile phone.

The unit M4016-RV can be also used for flow regulation.

All functions of M4016 were kept. It means that the unit works as a controlling device and datalogger at the same time. Also, the unit sends all measured values into server.

Pressures and flows regulation, regulation vavles
